SK1
SK3
SK3 Plus
Perfect dimensions. Perfect optics.
Timeless and yet so modern at the same time
Ergonomic design, generous vehicle dimensions, stylish appearance, sporty design and unmistakable lines. All this characterizes the HORWIN SK Series.
Looking away failed.
Design that inspires anew every time.
Everything always in view
Intelligent display
The 5.5-inch TFT display is perfectly illuminated to ensure readability in all lighting conditions. It displays all important information such as speed, battery status, range and much more.

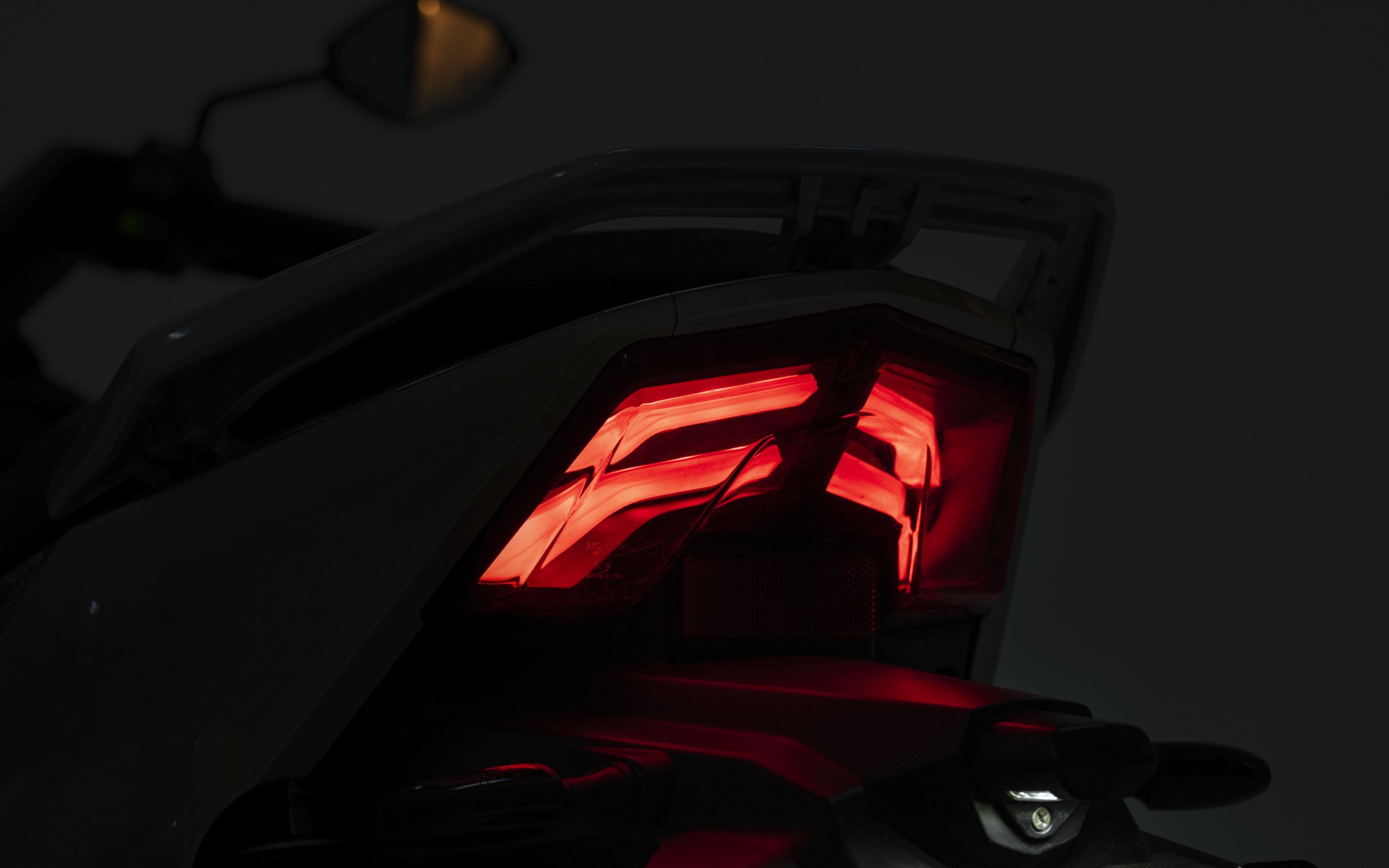

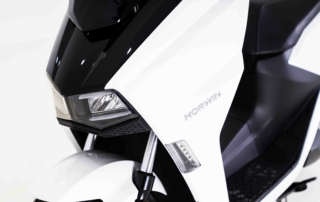

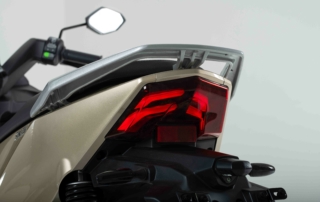

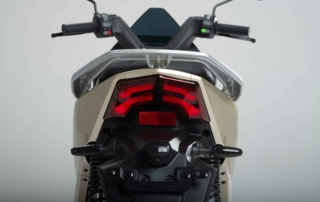

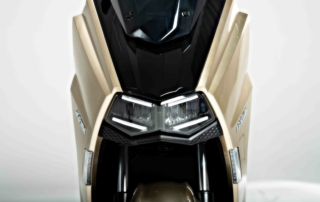

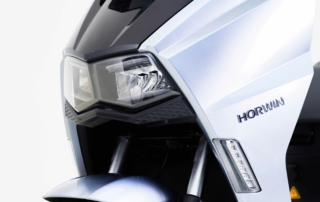

Turning night into day
LEDs as far as the eye can see

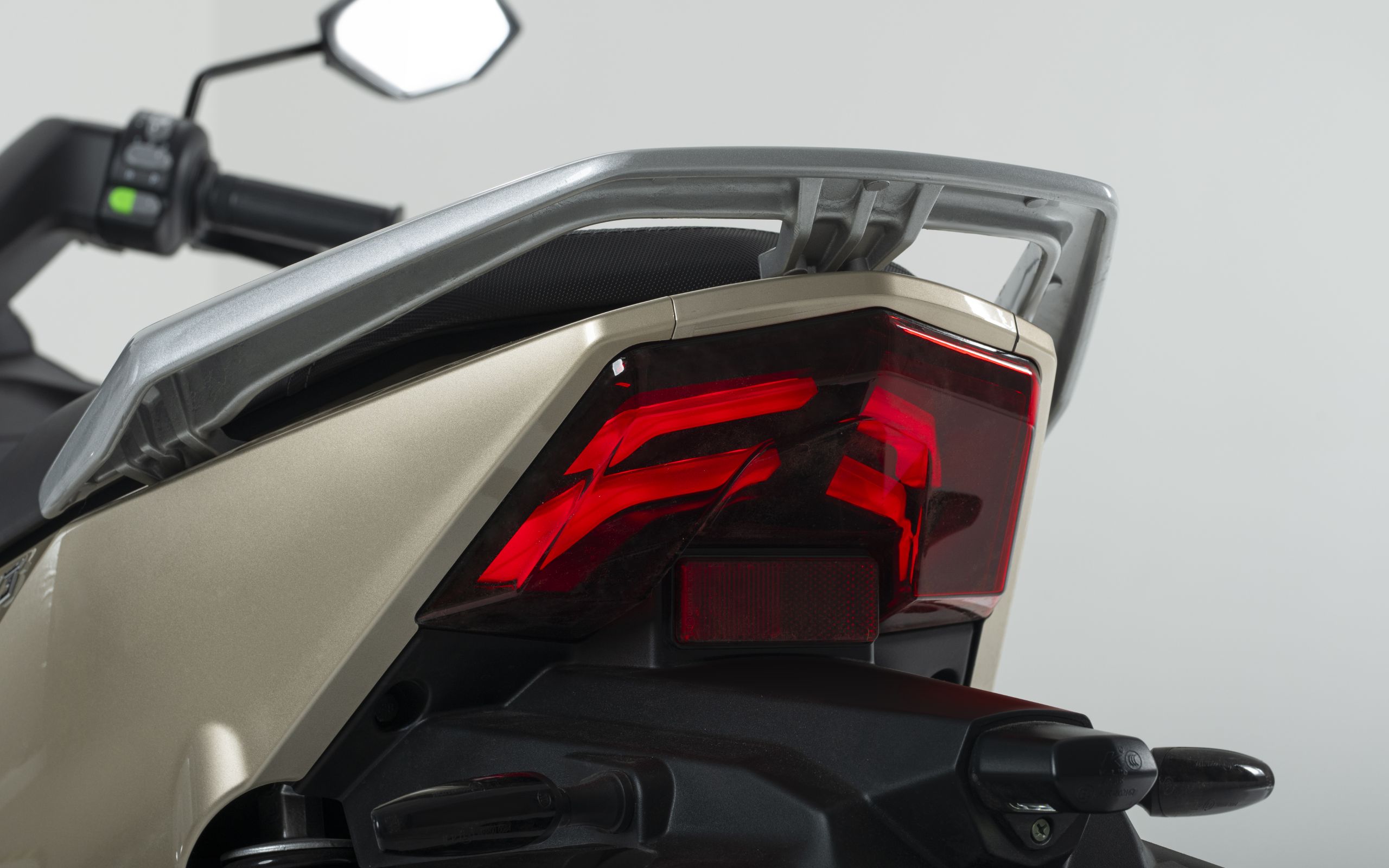

The modern and energy-efficient LED lighting is characterized by particularly high brightness and brilliance, which ensures perfect visibility in road traffic. The LED low beam and high beam ensure optimum illumination of the road.
Space for up to 2 batteries at the same time
Still. More. Range.

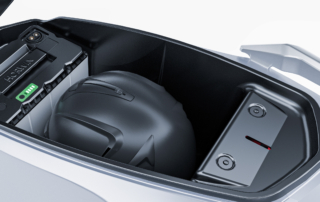

The HORWIN SK offers plenty of storage space under the seat. With the optional second battery, which is also fitted under the “hood”, the range can be significantly increased. Alternatively, a helmet also fits in the spacious storage compartment.
Safe and powerful
Battery
The SOC monitoring system and the modern battery management system can prevent malfunctions prevent. Among other things, they protect against overcharging, discharging and overvoltage, short circuit and monitor the temperature of the batteries.
More convenient than ever before
Charging made easy
The rechargeable battery or batteries have a carrying handle and can be easily transported. This means they can be recharged in the living room within a few hours to be ready for the next journey.
Safety has priority
A braking system of class
Front and rear disc brakes on all HORWIN SK models shorten the braking distance. The CBS braking system specially developed for the SK3 also ensures even safer braking, even at high speeds.
A good driving experience makes all the difference

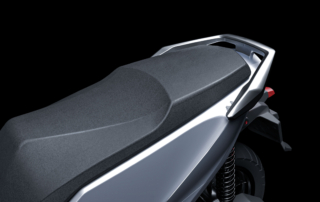

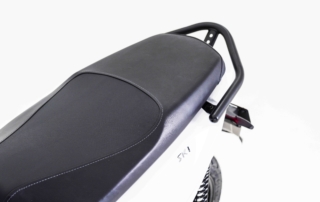

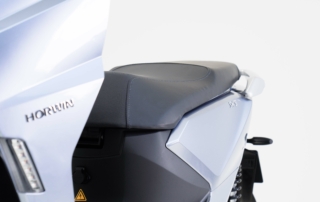

Comfort & ergonomics

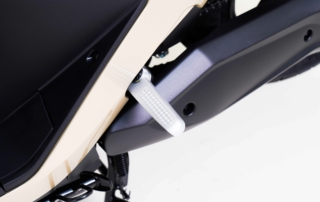

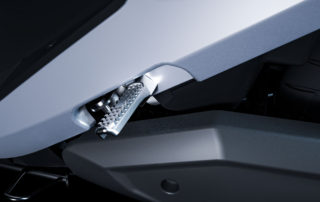

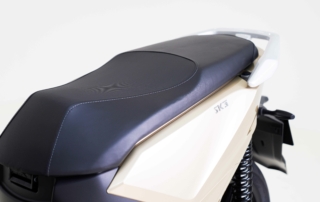

The large footboard and wide seat are ergonomically designed. The upper body and legs are relaxed at any height. The HORWIN SK offers a comfortable driving experience – from A to B.
Made for every road
A chassis to fall in love with

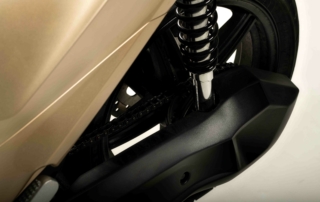

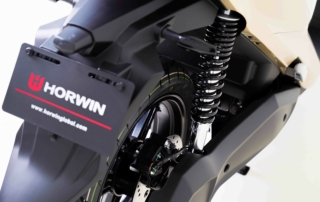

The double hydraulic front and rear shock absorbers provide the driver with an excellent and safe driving experience, regardless of the road conditions.
Full speed ahead
High-performance drive in the SK3
The center motor developed by HORWIN achieves an output of 6.3 kW at a speed of of up to 90 km/h. Within a few seconds, the HORWIN SK3 accelerates to top speed, with the full torque is available immediately when the throttle grip is operated.
SK3
Center motor with
Highly efficient and economical
Whisper quiet on the road
SK1
Hub motor with
It should be that simple.
Mount.
And drive off.
Further highlights
Original accessories
Colors SK1
Colors SK3

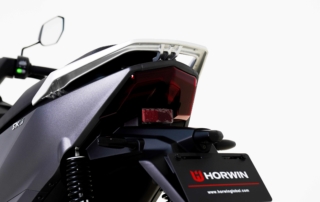

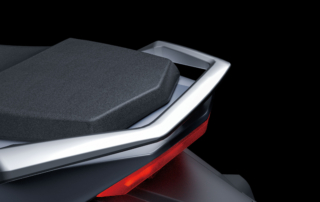

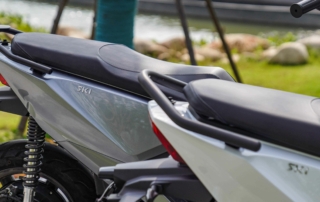

Photo gallery
Technical data
| Technical data | SK1 | SK3 | SK3 PLUS |
|---|---|---|---|
| Motor type | Hub motor | Center motor | Center motor |
| Energy management | FOC control | FOC control | FOC control |
| Rechargeable battery | 72 V, 36 Ah (optional with second battery) | 72 V, 36 Ah (optional with second battery and Y-cable) | 72 V, 45 Ah (with second battery and Y-cable as standard) |
| Dimensions | |||
| Length | 1993 mm | 1993 mm | 1993 mm |
| Width | 742 mm | 742 mm | 742 mm |
| Height | 1136 mm | 1136 mm | 1136 mm |
| Seat height | 790 mm | 790 mm | 790 mm |
| Front tire | 100 / 80-14 | 100 / 80-14 | 100 / 80-14 |
| Rear tire | 120 / 70-14 | 120 / 70-14 | 120 / 70-14 |
| Wheelbase | 1360 mm | 1360 mm | 1360 mm |
| min. Ground clearance | 155 mm | 155 mm | 155 mm |
| max. Permissible total weight | 270 kg | 282 kg | 288 kg |
| Empty weight without battery | 85 kg | 94 kg | 100 kg |
| Rim | Aluminum alloy | Aluminum alloy | Aluminum alloy |
| Specifications | |||
| max. Power | 3.0 kW | 6.3 kW | 8.64 kW |
| max. Speed | 45 km/h | 90 km/h | 100 km/h |
| Brake system | Disc brake front/rear | CBS brake system | CBS brake system |
| Charging time (8 A) | 36 Ah / approx. 4.5 h | 36 Ah / approx. 4.5 h | 45 Ah / approx. 4.5 h (10 A charger) |
| max. Range | 149 km (with 2 batteries) | 120 km (with 2 batteries) | 130 km (with 2 batteries) |
Details
